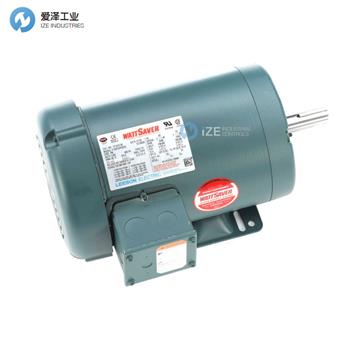

LEESON電機C145T34FB33C產品參數
General Specifications | |
Model : | C145T34FB33C |
Part Description : | ..2HP..3490RPM.145.TEFC.230/460V.3PH.60HZ.CONT.40C.1.25SF.RIGID.C145T34FB33C.....WATTSAVER.NOT....... |
Category : | Totally Enclosed Fan Cooled (TEFC) |
Nameplate Specifications | |
Output HP : | 2 HP |
Frequency : | 60 Hz |
Current : | 4.8/2.4 A |
Service Factor : | 1.25 |
Efficiency : | 0.855 |
Insulation Class : | F |
KVA Code : | L |
Enclosure : | Totally Enclosed Fan Cooled |
Ambient Temperature : | 40 °C |
Opp Drive End Bearing Size : | 6203 |
CSA : | Y |
IP Code : | 43 |
Output KW : | 1.5 kW |
Voltage : | 230/460 V |
Speed : | 3490 RPM |
Phase : | 3 |
Duty : | Continuous |
Design Code : | B |
Frame : | 145T |
Overload Protector : | No |
Drive End Bearing Size : | 6205 |
UL : | Recognized |
CE : | Y |
Technical Specifications | |
Electrical Type : | Squirrel Cage Induction Run |
Poles : | 2 |
Mounting : | Rigid base |
Drive End Bearing : | BALL |
Frame Material : | Rolled Steel |
Overall Length : | 13.43 in |
Shaft Diameter : | 0.875 in |
Assembly/Box Mounting : | F1 ONLY |
Weight : | 47.00 LB |
UPC : | 6.9172E+11 |
Shaft Extension : | 2.25 in |
Starting Method : | Across The Line |
Rotation : | Reversible |
Motor Orientation : | HORIZONTAL |
Opp Drive End Bearing : | BALL |
Shaft Type : | T |
Frame Length : | 7.50 in |
LEESON電機C145T34FB33C產品介紹
特征
優質有效評級
逆變器額定值；連續負載
F級絕緣系統–140框架及以上
用于直接耦合應用的屏蔽滾珠軸承，請聯系當?shù)劁N售辦事處，了解皮帶負載應用
動平衡轉子
扭矩超過NEMA性能標準；UL認證和CSA認證
Features
Premium efficient ratings
Inverter-rated; Continuous duty
Class F insulation system – 140 frame and higher
Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
Dynamically balanced rotors
Dynamically balanced rotors
Torques exceed NEMA performance standards; UL recognized and CSA certified
LEESON電機C145T34FB33C
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件LEESON 電機部分型號：
LEESON C145T34FB33C
LEESON C4T34FB2D
LEESON C4T17FH1D
LEESON C4T34FB3C
LEESON C4T17FB4C
LEESON C4T17FC31B
LEESON C4T17FC30B
LEESON C4T17FC32B
LEESON C4T34FB5B
LEESON C4T17FC33A
LEESON C4T17FK5B
LEESON C4T17FC40A
LEESON C4T17FK10A
LEESON C4T17FK11A
LEESON C4T17FH12A
LEESON C4T17FH13A
LEESON C6T17FB1E
LEESON C6T17FC1G
LEESON C6T34FC6F
LEESON C6T11FC1H
LEESON C6T34FK1F
LEESON C6T11FB3F
LEESON C6T34FB2E
LEESON C6T11FB2F
LEESON C6T11FB5E
LEESON C6T34FC9
LEESON C6T11FK1G
LEESON C6T34FB1E
LEESON C4T17FK2C
LEESON C4T17FC19C
LEESON C4T17FC18B
LEESON C4T17FC12C
LEESON C4T17FC10B
LEESON C4T17FH9D
LEESON C4T17FB10C
LEESON C4T17FB9C
LEESON C4T17FH6C
LEESON C4T17FH4C
LEESON C4T17FC9B
LEESON MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LEESON電機C145T34FB33C的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for LEESON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.dljtgw.com.
