DRUCK壓力模塊PM620系列技術參數
PM 620 Specification | |
Maximum intermittent pressure | 2 x FS |
Maximum working pressure | 110% FS |
Sealing | IP 65 (protected against dust and jets of water) |
Operating temperature | -10 to 50°C (14 to 122°F |
Storage temperature | -20 to 70°C (-4 to 158°F) |
Humidity | 0 to 90% RH non condensing |
Shock and vibration | BS EN 61010-1:2010; MIL-PRF-28800F for Class II equipment, 1 m Drop Tested |
EMC | BS EN 61326-1:2006 |
Electrical safety | BS EN 61010-1:2010 |
Pressure safety | Pressure equipment directive class SEP |
Approval | CE marked |
Size and weight | L. 56 mm, Dia. 44 mm, 106 g maximum |
DRUCK壓力模塊PM620系列介紹
Features
? Fully interchangeable with no need for set-up or calibration
? Simple screw fit - hand tight no tools required

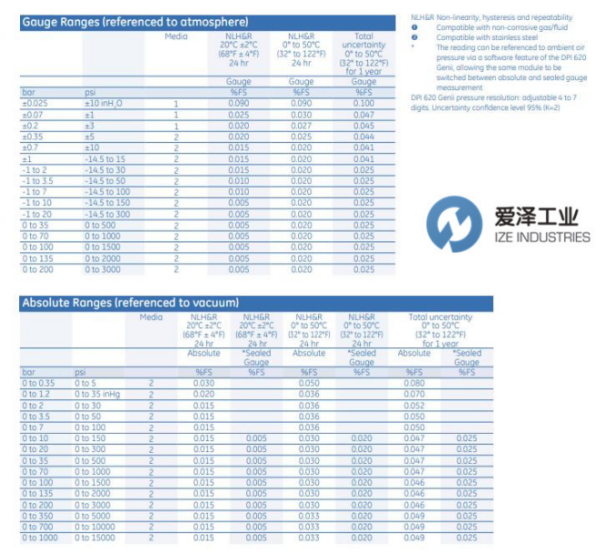

? Ranges from 25 mbar to 1000 bar (10 inH2 O to 15000 psi)
? Accuracy from 0.005% FS
The PM 620 is the latest development in digital output sensor technology incorporating a number of key innovations to allow pressure re-ranging of compatible equipment. A simple screw fit makes both the pressure and electrical connections without the need for tools, sealing tape, cables or plugs and digital characterisation allows interchangeability without set-up or calibration.
特征
?完全可互換，無需設置或校準
?簡單的螺釘安裝-用手?jǐn)Q緊，無需工具
?范圍從25 mbar到1000 bar（10 inH2 O到15000 psi）
?精度從0.005％FS
PM 620是數字輸出傳感器技術的新發展，它融合了許多關鍵創新，可以重新調整兼容設備的壓力。簡單的螺釘裝配無需工具，密封帶，電纜或插頭即可進行壓力和電氣連接，并且數字特性可實現互換性，而無需進行設置或校準。
DRUCK壓力模塊PM620系列其他型號：
DRUCK PM620-A1
DRUCK PM620-22A
DRUCK PM620-13G
DRUCK PM620-07G
DRUCK PM620-13A
DRUCK PM620-165G
DRUCK PM620-18G
DRUCK PM620-008G
DRUCK PM620-02G
DRUCK PM620-04G
DRUCK PM620-05G
DRUCK PM620-08G
DRUCK PM620-10G
DRUCK PM620-11G
DRUCK PM620-14G
DRUCK PM620-16G
DRUCK PM620-17G
DRUCK PM620-20A
DRUCK PM620-23A
DRUCK Pressure module NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DRUCK壓力模塊PM620-A1的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for DRUCK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.dljtgw.com.
DRUCK壓力模塊PM620-A1介紹
