HYDAC液位開關HNS3126-F31-0410-000選型參數

HYDAC液位開關HNS3000系列參數表

HYDAC液位開關HNS3000系列介紹及選型

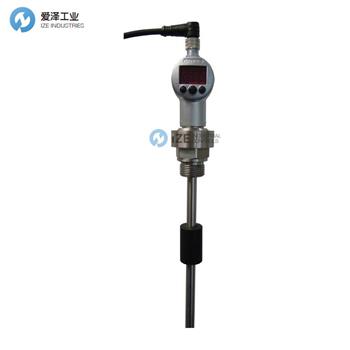

The HNS 3000 is an electronic level switch with integrated display. The float-based sensor for high-precision analogue monitoring of the fluid level has 1,2 or 4 switching outputs and an analogue output signal is available as an option.

In addition to the standard minimum and maximum switching signals, with the 4 switching output version it is possible to set additional warning signals to prevent problems such as tank overflow or aeration of the pump.

The main applications of the HNs 3000 are primarily in hydraulics, e.g. for fluid level monitoring of a tank.

The sensor is available in rod lengths of 250...730mm as standard. Rod length of up to 2500 mm is possible. The instrument is also available with or without temperature probe.

Depending on the application, several different floats are available, e.g. stainless steel for aggressive media or plastic

- 1, 2 or 4 independent PNP transistor switching outputs

- Free assignment of the switching outputs to the measured variables

- Switching and reset points independently adjustable

- Optional switchable analog Output

- 4-digit digital Display

HNS 3000是帶有集成顯示屏的電子液位開關?；诟∽拥膫鞲衅骺蓪?duì)液位進行高精度的模擬監控，具有1,2或4個開關輸出，并且可選配模擬輸出信號。

除了標準的最小和最大開關信號外，對于4開關輸出版本，還可以設置其他警告信號，以防止諸如油箱溢出或泵充氣之類的問題。

HN 3000的主要應用主要在液壓方面，例如用于監控罐的液位。

傳感器的標準桿長為250 ... 730mm。桿的長度最大可以達到2500 mm。該儀器也可帶有或不帶有溫度探頭。

根據不同的應用，有幾種不同的浮子可供使用，例如用于腐蝕性介質或塑料的不銹鋼

-1、2或4個獨立的PNP晶體管開關輸出

-將開關量輸出免費分配給測量變量

-開關和復位點可獨立調節

-可選的可切換模擬輸出

-4位數字顯示

HYDAC液位開關HNS3000系列其他常用型號：

HYDAC HNS 3126-3-0730-000

HYDAC HNS 3126-F31-0250-000

HYDAC HNS 3126-F31-0280-000

HYDAC HNS 3126-F31-0370-000

HYDAC HNS 3126-F31-0410-000

HYDAC HNS 3126-F31-0520-000

HYDAC HNS 3126-F31-0730-000

HYDAC HNS 3126-F31-1000-000

HYDAC HNS 3126-F31-1400-000

HYDAC pump NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于HYDAC液位開關HNS3126-F31-0410-000的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。

If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.dljtgw.com.

HYDAC液位開關HNS3126-F31-0410-000規格描述
