ZIEHL溫度控制器TR600系列技術參數
Rated supply voltage Us | AC/DC 24 – 240V |
Tolerance | DC 20,4 - 297 V, |
Power consumption | < 4 W |
Sensor connection (6 sensors) | Pt 100 (RTD) acc. to EN 60751 (2/3- wire) |
Measuring range | -199°C .. 800°C, resolution = 1°C |
Resistance of sensor + wire. | max. 500 Ohm |
Sensor current | ≤0,7 mA |
Measuring cycle/ time sensor | ≤ 1,5 s |
Tolerance | ±0,5 % of measured value ±1 digit |
Temperature factor | <0,04°C/K |
Analog outputs | OUT 1 and OUT 2 |
Voltage-output | DC 0/2 V – 10 V , max. DC 10 mA |
Current output | DC 0/4 mA – 20 mA |
Load | max. 500 Ω |
No-load voltage | max. DC 16 V |
Tolerance | 1% of programmed span ±1 °C |

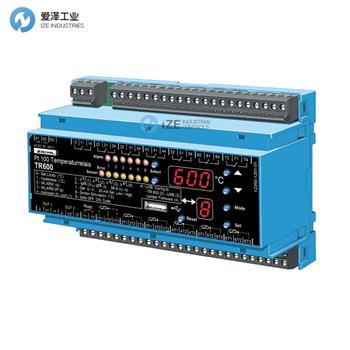

ZIEHL溫度控制器TR600系列介紹
Pt 100恒溫器TR600是一款溫度控制器，可同時監控多達六個Pt 100傳感器。六個開關點和六個繼電器允許幾乎任何開關動作組合。它還可以選擇一組三個或六個傳感器中的最高溫度。兩個傳感器或傳感器組的溫度可以發送到2個模擬輸出，即用于遠程顯示或進一步評估。編程是非?？勺兒秃唵蔚?。
The Pt 100 thermostat TR600 is a temperature controller and monitors up to six Pt 100 sensors at the same time. Six switching points and six relays permit almost any combination of switching action. It also can select the highest temperature of a group of three or six sensors. The temperatures of two sensors or groups of sensors can be issued to 2 analog outputs i.e. for remote displays or further evaluation. Programming is very variable and simple.
ZIEHL溫度控制器TR系列其他常用型號：
ZIEHL TR600-T224360
ZIEHL TR111V
ZIEHL TR1200
ZIEHL TR1200IP
ZIEHL TR122D(A)
ZIEHL TR210
ZIEHL TR250
ZIEHL TR400
ZIEHL TR440
ZIEHL TR600 analog
ZIEHL TR600 RS485
ZIEHL TR640IP
ZIEHL TR660IP
ZIEHL TR800Web
