ITALSENSOR編碼器TK561.FRE.1024.11/30.S.K4.11.L10.LD2-1130技術參數
TK561-bidirectional + index/ bidirezionale + zero |
FRE-Flange REO - REO 444 |
1024 |
11/30-+11÷30 V |
S-from 0 a - up to 100 kHz / da 0 a 100 kHz |
K4-IP 64 (EN60529) |
11-? 11 mm (Flange FRE ) |
L10-on 10 pins radial MIL connector /conn. circolare militare radiale a 10 poli |
LD2-1130-Line driver 11/30 Vcc output ( only with voltage supply - solo con alimentazione 11/30V) |

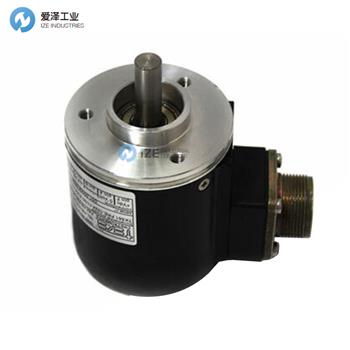

ITALSENSOR編碼器TK500系列產品介紹
TK510 – TK511 – TK560 – TK561
Optical incremental encoder – Solid shaft
Robust incremental optical encoder suitable for different industrial applications, especially indicated
for harsh environments. Thanks to its robust construction and high protection degree this model allows to
operate in harsh environments where challenging ambient conditions such as dust, liquids, temperature,
shocks and vibrations are available, ensuring high reliability and long service life.
Body diameter (mm) 63.5
Flange square flange, servo standard, servo-clip, FRE (REO444)
Diameter shaft (mm) 6, 8, 9.52, 10, 11, 11R
Resolution (PPR) up to 20.000 ppr, others on demand
Output frequency up to 300 kHz
Protection class (EN60529) K4, K5, K6
Interface LD, LD2, PP2, NPN, PNP
MECHANICAL SPECIFICATIONS
Dimensions：see drawings
Shaft loading：axial 200N; radial 200N
Shaft Rotation Speed：10.000 RPM to short cycle time; 6000 RPM continuous; 2000 RPM with hole shaft proof
Starting torque a 25° C：0,025Nm; 0,040Nm whit hole shaft proof
Moment of inertia：40g cm2
Bearings life：5 x 10^9 revolutions (minimum)
Weight：~ 0,56kg
ELECTRICAL SPECIFICATIONS
Output frequency：up to 300 kHz
Sinchronous index output：default on channel A; B – A+B Optional
Supply current without load：150 mA max
Protection：short circuit protection (only output LD2 and PP2) against inversion of polarity (except 5Vcc)
MATERIALS
Shaft：stainless steel
Flange：aluminium non corroding
Housing：Aluminium painted with inhibithing treatment 180°C
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range：-10°C ÷ +70°C
Storage temperature range：-30°C ÷ +85°C
Relative humidity：98% RH without condensing
Vibrations：10 g (from 10 up to 2.000 Hz)
Schock：20 g (for 11 ms)
TK510 – TK511 – TK560 – TK561
光學增量式編碼器–實心軸
適用于不同工業應用的堅固的增量式光學編碼器
適用于惡劣環境。由于其堅固的結構和高防護等級，該型號允許在具有挑戰性的環境條件（例如灰塵、液體、溫度、抗沖擊和振動）中的長使用壽命）。
機身直徑 63.5
法蘭方形法蘭，標準伺服夾，F(xiàn)RE (REO444)
直徑軸 (mm) 6, 8, 9.52, 10, 11, 11R
分辨率 (PPR) 高達 20.000 ppr
輸出頻率高達 300 kHz
防護等級（EN60529）K4、K5、K6
接口 LD、LD2、PP2、NPN、PNP
機械規格
軸載荷：軸向200N；徑向 200N
軸轉速：10.000 RPM to short cycle time; 6000 RPM 連續；2000 RPM帶孔軸
啟動扭矩a 25°C：0,025Nm；0,040Nm
轉動慣量：40g cm2
軸承壽命：5 x 10的9次方轉（最小值）
重量：0,56kg
電氣規格
輸出頻率：高達300 kHz
空載供電電流：150 mA max
保護：短路保護（僅輸出LD2和PP2）防止極性反轉（5Vcc除外）
材料
軸：不銹鋼
法蘭：鋁
外殼：鋁高溫可達180°C
環境指標
工作溫度范圍：-10°C ÷ +70°C
儲存溫度范圍：-30°C ÷ +85°C
相對濕度：98% RH
振動：10 g（從 10 到 2.000 Hz）
沖擊：20 g (11 ms)
ITALSENSOR編碼器其他常用型號：
ITALSENSOR TK561.FRE.1024.11/30.S.K4.11.L10.LD2-1130
ITALSENSOR TK561-F-1250-12-S-10-SPP
ITALSENSOR TK561-F-1250-5-V-9.52-L-LD
ITALSENSOR TK561.F.2500.5.S.K4.8.P10.LD.X399
