DESTACO氣動夾鉗RPC-331M-V技術參數
Specifications | Units | 331 |
Total Rated Grip Force F @ 100 psi [7 bar] | N [lbs] | 3336 [750] |
Total Stroke | mm [in] | 15.7 [0.62] |
Weight | kg [lbs] | 1.4 [3.0] |
Pressure Range | bar [psi] | 1.4-7 [20-100] |
Ingress Protection Class (IP) | IP54 | |
Displacement | cm3 [in3 ] | 52.3 [3.31] |
Temperature Range (Buna-N seals) | °C [°F] | -35°~80° [-30°~180°] |
Temperature Range (Viton? seals) | °C [°F] | -30°~150° [-20°~300°] |
Actuation | sec | 0.23 |
Accuracy | mm [in] | ±0.05 [±0.002] |
Repeatability | mm [in] | ±0.03 [±0.001] |
Valve to Required Actuate Single Acting | 4-way, 2-position |
DESTACO氣動夾鉗RPC系列產品介紹及選型
? Self-centering gripper with very high grip force
? Optional stripper pate for part insertion/ejection
? Ideal for gripping small to very large round parts
? Grip force range from 445N to 13345N
? Repeatability of +/-0.03mm
Applications:
? Part feed/ejection
? Lathe applications
? Large heavy round parts
The RPC Series is a 3-jaw self-centering gripper with a very high grip force
? 具有非常高夾持力的自定心夾持器
? 用于零件插入/彈出的可選剝離板
? 非常適合抓取小到非常大的圓形零件
? 握力范圍從 445N 到 13345N
? +/-0.03mm 的重復性
應用：
? 零件進料/彈出
? 車床應用
? 大型重型圓形零件
RPC 系列是一種具有非常高夾持力的 3 爪自定心夾持器

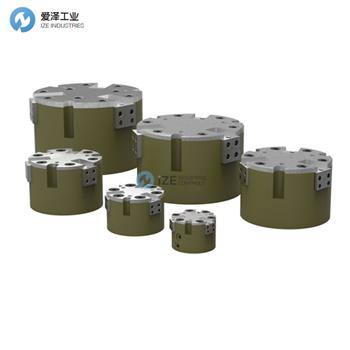

SELF-CENTERING PARALLEL GRIPPERS HEAVY PARTS & LATHE APPLICATIONS – RPC SERIES
Designed for part feed/ejection, lathe applications, and large heavy round parts. Self-centering gripper with very high grip force. Optional stripper pate for part insertion/ejection. Ideal for gripping small to very large round parts. Grip force ranges from 445N to 13345N and repeatability of +/-0.03mm.
自定心平行夾爪重型零件和車床應用 – RPC 系列
專為零件進料/脫模、車床應用和大型重型圓形零件而設計。 自定心夾持器，具有非常高的夾持力。 用于零件插入/彈出的可選剝離板。 非常適合抓取小到非常大的圓形零件。 夾持力范圍從 445N 到 13345N，重復精度為 +/-0.03mm。
DESTACO氣動夾鉗RPC系列其他常用型號：
DESTACO RPC-315
DESTACO RPC-315M
DESTACO RPC-320
DESTACO RPC-320M
DESTACO RPC-331
DESTACO RPC-331M
DESTACO RPC-344
DESTACO RPC-344M
DESTACO RPC-356
DESTACO RPC-356M
DESTACO RPC-368
DESTACO RPC-368M
DESTACO Pneumatic clamp NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DESTACO氣動夾鉗RPC-331M-V的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for DESTACO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.dljtgw.com.
DESTACO氣動夾鉗RPC系列RPC-331M-V介紹及選型
