CASAPPA馬達DIVISORE-PLD20/4/CS-GE/8-GD/8-GD/8-GD/8-GD/8技術參數
Series | PLD 20 - Polaris 20 |
Number of sections | 4 |
Standard side inlet section | CS - Left inlet section |
Inlet port dimensions | GE - GAS STRAIGHT THREAD PORTS (BSPP) |
Displacement | 8 - 0.50 in3/rev (8,3 cm3/rev) |
Outlet port dimensions | GD - GAS STRAIGHT THREAD PORTS (BSPP) |

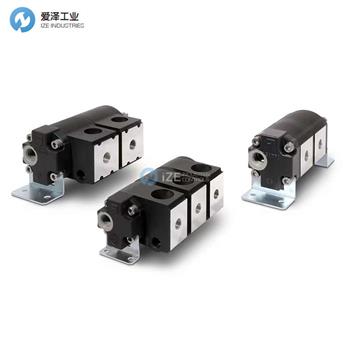

CASAPPA馬達POLARIS系列介紹
現代機械的電路越來越復雜，通常需要單獨和獨立運動的組合。 POLARIS 10 和 POLARIS 20 分流器提供高技術、低成本的動力傳輸，并解決液壓流量分配的應用問題。 根據簡化液壓回路設計的策略，分流器內置有溢流閥，用于限制壓力并防止氣蝕。
這些組件可以巧妙地優化液壓回路并降低安裝成本。 POLARIS 分流器是兩個或多個具有公共內部連接軸的部分分配器。 這根據截面位移保持通過每個截面的流量之間的恒定比率。 旋轉分流器的理論工作實際上不會耗散能量，如果一個部分的出口壓力低于輸入壓力，該部分將作為電動機運行并從流體中獲取能量。 該能量不會被浪費，而是通過公共軸轉移到作為泵運行的其他部分，因此需要出口壓力大于入口壓力。 在工況下，整體效率取決于單段效率之和。
因此，這些產品可用作流量均衡器、分流器和增壓器。
Modern machinery with increasingly complex circuits often needs combinations of separate and independent movements. POLARIS 10 and POLARIS 20 flow dividers provide technically advanced, low cost power transmission and solve application problems wherever hydraulic flow has divided. In line with our policy of simplifying the design of hydraulic circuits, our flow dividers have relief valves built into limit pressure and prevent cavitation.
These components permit hydraulic circuits to be cleverly optimised and reduce installation costs. The POLARIS flow dividers are two or more section dividers with a common internal connecting shaft. This maintains a constant ratio between the flows through each section in accordance with section displacement. Theoretical working of rotary flow dividers do not dissipate energy in fact if the outlet pressure of one section drops below input pressure, that section operates as a motor and takes energy from the fluid. This energy is not wasted but transferred by the common shaft to the other sections which operate as pumps and therefore need outlet pressure to be greater than inlet pressure. In working conditions, overall efficiencies depend on the sum of the single sections efficiency.
These products can therefore be used as flow equalizers, flow dividers and pressure intensifiers.

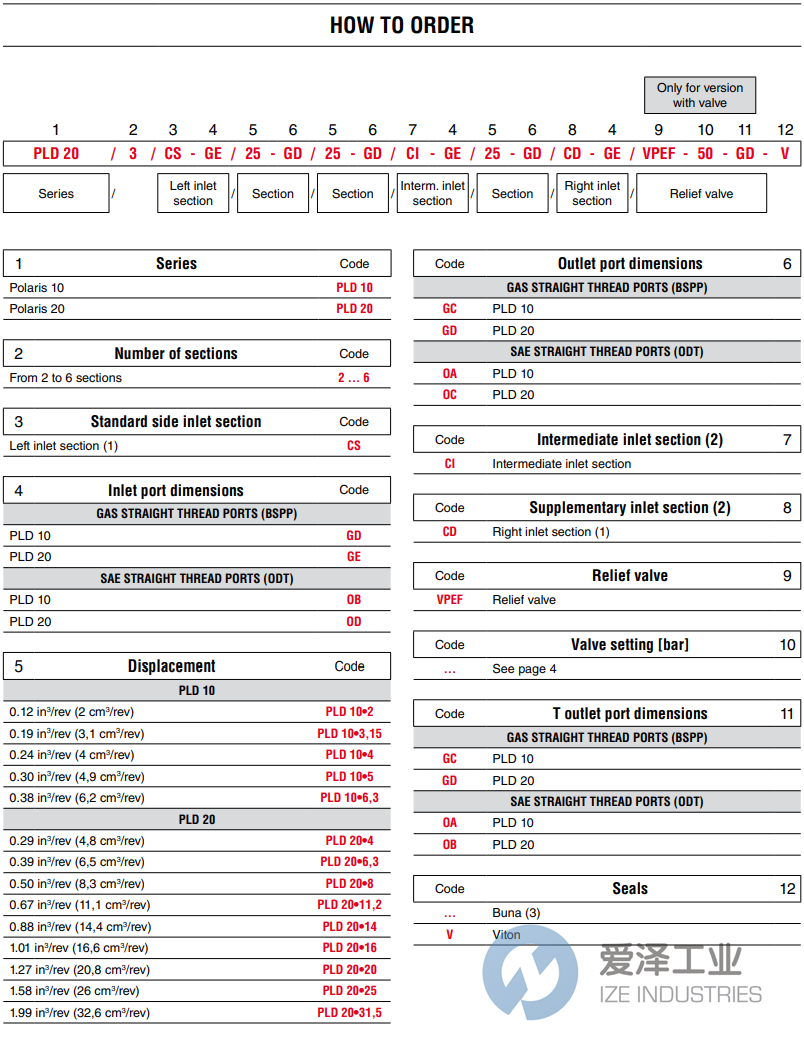

CASAPPA馬達POLARIS系列選型
CASAPPA馬達POLARIS系列其他常用型號：
CASAPPA PLD20/4/CS-GE/8-GD/8-GD/20.8-GD
CASAPPA PLD20/4/16-GD/16-GD/CI-GE
CASAPPA PLD20/4/CS-GE/8-GD/8-GD/8-GD/8-GD-VPEF(160)-GD
CASAPPA PLD20/4/CS-GE/16-GD/16-GD/16-GD/16-GD
CASAPPA PLD20/4/CS-GE/11,2-GD
CASAPPA PLD20/4/CS-GE/8-GD/8-GD/8-GD/8-GD/8
