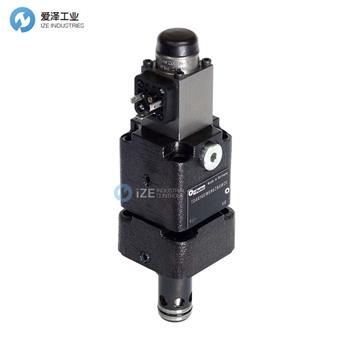

PARKER閥TDA032EW09B2NLW技術規格
Technical Specifications | |
Product Series: | Throttle valve |
Port Connection: | NG32 |
Operation Type: | Pilot |
Flow Rate: | Nominal Flow |
Actuation Type: | Proportional |
Function: | Flow direction from B to A |
Seal Material: | NBR |
Function: | 2-way |
Mounting Type: | Slip-in cartridge |
Input Voltage: | 6 VDC |
Mounting Position: | Unrestricted |
Configuration: | N/A |
Maximum Operating Pressure: | 350 bar |
Maximum Flow Rate: | 950 L/min |
Flow Rate: | Nominal Flow |
Flow Direction: | B to A |
Maximum Operating Temperature: | 60 °C |
Minimum Operating Temperature: | -20 °C |
Seal Material: | NBR |
For Fluid Type: | Hydraulic oil according to DIN 51524 |
Weight: | 5.8 kg |
Body Material: | Steel/Cast iron (cover) |
PARKER閥TDA系列介紹
TDA 系列 2 通比例節流閥用于控制大流量油。
特點
? 腔體和安裝模式符合 DIN ISO 7368。
? 斷電時具有故障保存功能。
? 端口 B —> A 無泄漏。
? 允許壓差高達 350 bar。
? 流量 A —> B 可選。
功能
比例流量閥設計為三級。閥芯由帶閥座結構的順序閥芯先導操作。帶有力反饋的磁性、無級可調、可調閥控制順序閥芯的位置。因此，閥芯的位置不受壓差影響。壓差可達到最大工作壓力。先導體積要求約為 1 l/min。操作的最小壓力為 3 bar。
先導壓力必須大于連接 A 中的系統壓力的 25%。流量調節精度為 0.5%。由于漸進特性流線，在低流量時，該值在漸進區內可提高 0.25%。零行程調節時間約為 25 毫秒。閥門流動方向為從 B 到 A。在關閉的中性位置，閥門從 B 到 A 無泄漏。在此中性位置，先導閥不需要任何先導油。油箱連接 Y 的壓力不得高于 100 bar。
The 2-way proportional throttle valves of the TDA series are used to control large oil flows.
Features
? Cavity and mounting pattern according to DIN ISO 7368.
? Fail save function at power failure.
? Leak-free from port B —> A.
? Pressure difference up to 350 bar allowed.
? Flow A —> B optional.
Function
Proportional flow valves are designed with three stages. The valve poppet is pilot-operated by a sequence spool with seat construction. A magnetic, infinitely variable, adjustable valve with force feedback controls the position of the sequence spool. Thus the position of the poppet cannot be affected by differential pressure. The differential pressure can be up to the maximum working pressure. The Pilot volume requirement amounts to approx. 1 l/min. The minimum pressure for operation is 3 bar.
The pilot pressure must be larger than 25% of the System pressure in connection A. The adjusting accuracy of the flow is 0.5%. Due to the progressive characteristic flow line, this value is improved by 0.25% in the progressive zone at low flow rates. The adjusting time for null stroke is approx. 25 ms. The valve flow direction is from B to A. The Valve is leak-free from B to A in the closed neutral position. In this neutral position, the pilot valve does not require any pilot oil. The tank connection Y must not be pressurised higher than 100 bar.
