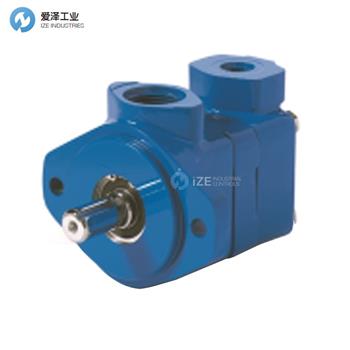

VICKERS液壓泵F3-V10-1S6S-1C-20產品參數
F3-V10-1S6S-1C-20 | ||
Feature | Code | Description |
SEAL | F3- | VITON FLUOROCARBON SEALS - FOR PHOSPHATE ESTERS, PETROLEUM OILS, WATER GLYCOLS AND FIRE RESISTANT FLUIDS |
SERIES | V10 | V10 |
COVER TYPE | _ | OMIT FOR STANDARD COVER |
MOUNTING | -1 | 2-BOLT FLANGE |
INLET PORT CONNECTIONS | S | 1.3125-12 STRAIGHT THREAD |
SAE RATED CAPACITY | 6 | 23 L/MIN (6 US GPM) |
OUTLET PORT CONNECTIONS | S | 0.750-16 ST. THREAD |
SHAFT SEAL TYPE | _ | OMIT FOR SINGLE LIP SEAL AND SEALED BEARINGS |
SHAFTS | -1 | STRAIGHT, KEYED |
POSITION OF OUTLET | C | IN LINE WITH INLET |
ORIFICE NO. 1 FLOW RATE | _ | NOT SPECIFIED |
PRESSURE SETTING | _ | NONE |
DESIGN | -20 | (V10) |
SHAFT ROTATION | -L | LEFT HAND (COUNTERCLOCKWISE) |
SPECIAL | _ | NONE |
VICKERS液壓泵V10系列產品規格
PRODUCT SPECIFICATIONS
VANE FUNCTION TYPE:Pump
FRONT OUTLET PORT POSITION (COVER END VIEW):INLINE WITH INLET PORT
SPECIAL FEATURES:None
FRAME SIZE:V10
CONFIGURATION:Single
WORKING PRESSURE - MAX:152 b
PRODUCT MATERIAL:Cast Iron
RING SIZE:1
FLOW RATE:56.24355072 LQ
IDENTIFICATION:None
DESIGN CODE:20
DISPLACEMENT:19.5 CCR
SEAL MATERIAL:Viton
SHAFTS:Straight Keyed
SERIES:V10
SHAFT ROTATION:Left
MINIMUM SPEED:3000 RPM
REAR OUTLET PORT CONNECTIONS:0.750-16 Straight Thread
INLET PORT CONNECTIONS:1 5/16-12 Straight Thread
APPLICATION:Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
FRONT FLANGE MOUNTING STYLE:Standard 2 Bolt 101-2
產品規格
葉片功能類型：泵
前出口端口位置（蓋端視圖）：與入口端口成一直線
特殊功能：無
鏡架尺寸：V10
配置：單
工作壓力-最大：152 b
產品材質：鑄鐵
戒指尺寸：1
流量：56.24355072 LQ
標識：無
設計編號：20
排量：19.5 CCR
密封材料：Viton
軸：直鍵
系列：V10
軸旋轉：左
最低速度：3000 RPM
后部出口端口連接：0.750-16直螺紋
入口端口連接：1 5 / 16-12直螺紋
應用：石油和天然氣，金屬切割，自卸車，輪式裝載機，塑料注射成型
前法蘭安裝樣式：標準2螺栓101-2
VICKERS液壓泵V10系列其他常見型號：
VICKERS F3 V10 1S6S 1B20
VICKERS F3 V10 1S6S 1D20
VICKERS F3-V10-1S6S-1A-20-L
VICKERS F3-V10-1S6S-1C-20-L
