EATON濾袋LCR 系列過濾等級介紹
Mode | Particle Size at Common Removal Efficiencies (μm) | ?P (psi) Size 02 | |||
>60% | >90% | >95% | >99% | ||
113/123 | 0.5 | 1 | 2 | 4 | 0.36 |
114/124 | 0.75 | 2 | 3 | 5 | 0.3 |
115/125 | 1.5 | 3.5 | 8 | 10 | 0.15 |
116/126 | 2 | 6 | 13 | 15 | <0.15 |
118/128 | 25 | 35 | 37 | 40 | <0.15 |
119/129 | 15 | 25 | 27 | 30 | <0.15 |
130 | 6 | 14 | 15 | 20 | 0.72 |
135 | 1 | 6 | 8 | 10 | 0.29 |
522 | 0.5 | 1 | 1.5 | 2.6 | 1.45 |
525 | 1 | 2 | 3.5 | 6 | 0.26 |
527 | 2 | 5 | 9 | 13 | 0.15 |
529 | 10 | 20 | 23 | 32 | <0.15 |
EATON濾袋LCR-522-T02A-04X產品介紹
LOFCLEAR? Series 500 Filter Bags
LOFCLEAR Series 500 Filter Bags have an all-welded multi-pleated construction for high efficiency and long life. This series of bags has a pleated prefiltration layer and a complex design of final filtration layers, allowing the removal of difficult-to-filter gels and deformable particles with a high capacity of solids loading. The outer web covering eliminates any downstream fiber migration.
LOFCLEAR Series 500 Filter Bags are available in four different efficiency ratings so you can choose your exact required filtration efficiency.
LOFCLEAR Filter Bags have filtration efficiencies from 95 to 99%, with a dirt-holding capacity of over 2 pounds.
Among the many applications for LOFCLEAR Series 500 Filter Bags are oils, slurries, dilute oil removal, re-circulating batch systems, and systems with heavy contamination.
LOFCLEAR?500系列濾袋
LOFCLEAR 500系列濾袋采用全焊接多褶結構，高效率，使用長壽命。該系列袋子具有打褶的預過濾層和復雜的最終過濾層設計，可去除難以過濾的凝膠和具有高固體負載能力的可變形顆粒。外部纖網覆蓋物消除了任何下游纖維遷移。
LOFCLEAR 500系列濾袋有四種不同的效率等級，因此可以選擇所需的確切過濾效率。
LOFCLEAR濾袋的過濾效率為95％至99％，可容納超過2磅的污物。
LOFCLEAR 500系列濾袋的眾多應用包括油，漿液，稀油去除，循環分批系統和重度污染系統。

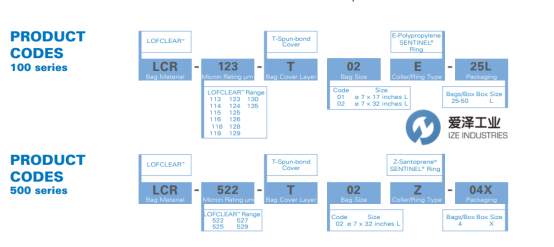

EATON濾袋LCR系列選型
EATON濾袋LCR系列其他常用型號：
EATON LCR-529-T02Z-04X
EATON LCR-522-T02Z-04X
EATON LCR-525-T02Z-04X
EATON LCR-527-T02Z-04X
EATON LCR-123-T01E-25L
EATON LCR-123-T01E-50L
EATON LCR-123-T02E-25L
EATON LCR-123-T02E-50L
EATON LCR-124-T01E-25L
EATON LCR-124-T01E-50L
EATON LCR-124-T02E-25L
EATON LCR-124-T02E-50L
EATON Filter Bags NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EATON濾袋LCR-522-T02A-04X的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for EATON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.dljtgw.com.
EATON濾袋LCR系列 LCR-522-T02A-04X選型及介紹
