REXROTH齒輪泵AZPB系列規格描述
General | |
Construction | External gear pump |
Mounting | Flange or through-bolting with spigot |
Line ports | Flange or thread |
Direction of rotation (looking on shaft) | Clockwise or counter-clockwise; the pump may only be driven in the direction indicated |
Installation position | Any |
Load on shaft | Radial and axial forces only after consulting |
Ambient temperature range | –30 °C...+80 °C with NBR seals or –20 °C...+110 °C with FKM seals |
Hydraulic fluid | – Mineral oil compliant with DIN 51 524, 1–3, however under higher load at least HLP compliant with DIN 51 524 Part 2 recommended. |
Viscosity | 12...800 mm2/s permitted range |
Hydraulic fluid temperature range | max. +80 °C with NBR seals *) |
Filtration ***) | At least cleanliness level 20/18/15 compliant with ISO 4406 (1999) |
Efficiency | on request, depending on load cycle |
Service life | on request, depending on load cycle |
REXROTH齒輪泵AZPB系列特點
General
Rexroth external gear pumps are available as standard gear pumps in the 4 series of B, F, N and G and as SILENCE gear pumps in the S, T and U series, and as the SILENCE PLUS version in the J series, in which the displacements are graded by different gear widths. Further configuration variants are given by different flanges, shafts, valve arrangements and multiple pump combinations.
力士樂外嚙合齒輪泵可作為B，F(xiàn)，N和G 4系列的標準齒輪泵，以及S，T和U系列的SILENCE齒輪泵，以及J系列的SILENCE PLUS版本。 排量通過不同的齒輪寬度分級。 通過不同的法蘭，軸，閥布置和多個泵組合給出了進一步的配置變型。

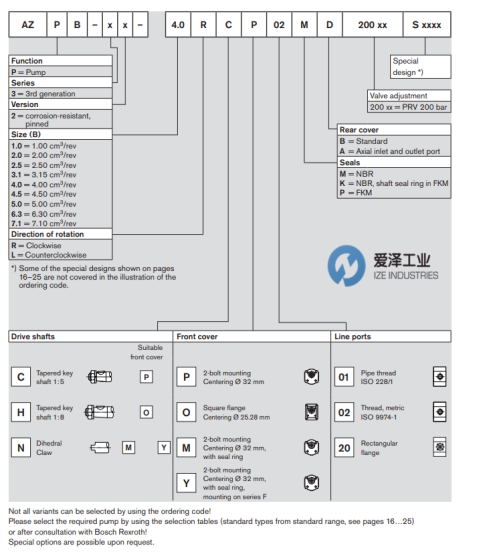

REXROTH齒輪泵AZPB系列選型
REXROTH泵AZPB系列其他常用型號：
REXROYH AZPB-10-1,0RCP2MB
REXROYH AZPB-10-1,0RCM2MB
REXROYH AZPB-22-1,0RCP02MB
REXROYH AZPB-22-1,0RNM02MB
REXROYH AZPB-10-1,0LCP2MB
REXROYH AZPB-22-1,0LCP02MB
REXROYH AZPB-22-1,0LNM02MB
REXROYH AZPB-10-1.0RHO01MB
REXROYH AZPB-22-1,0RHO01MB
REXROYH AZPB-22-1,0LHO001MB
REXROYH AZPB-10-2,0RCP2MB
REXROYH AZPB-10-2,0RCPXXMA-S0072
REXROYH AZPB-10-2,0RCM2MB
REXROYH AZPB-10-2,0RNM02MB
REXROYH AZPB-10-2,0RNM1MB-S0008
REXROYH AZPB-22-2,0RCP02MB
REXROYH AZPB-22-2,5RCP02MB
REXROYH AZPB-22-2,0RNM02MB
REXROYH AZPB-22-2,5RNM02MB
REXROYH AZPB-22-2,0RCP20MB
REXROYH AZPB-22-2,5RCP20MB
REXROYH AZPB-22-2.0RNM20MB
REXROYH AZPB-22-2.5RNM20MB
REXROYH AZPB-10-2,0LCP2MB
REXROYH AZPB-10-2,0LNM02MB
REXROYH AZPB-10-2,0LCP20MB
REXROYH AZPB-22-2,0LCP02MB
REXROYH AZPB-22-2,5LCP02MB
REXROYH AZPB-22-2,0LNM02MB
REXROTH pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH齒輪泵AZPB-22-1.0RCP02MB的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.dljtgw.com.
REXROTH齒輪泵AZPB系列 AZPB-22-1.0RCP02MB規格描述
