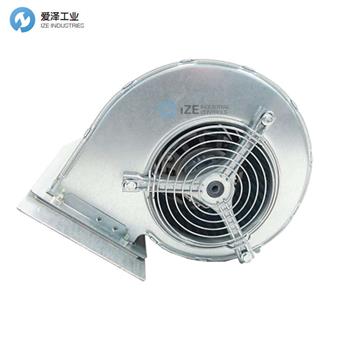

EBM風機D2D160-CE02-11技術參數
Technical description | |
Weight | 11.1 kg |
Fan size | 160 mm |
Rotor surface | Painted black |
Impeller material | Sheet steel, galvanized |
Housing material | Sheet steel, galvanized |
Guard grille material | Steel, coated with gray plastic (RAL 9006) |
Motor suspension | Motor vibration-damped on both sides |
Direction of rotation | Counterclockwise, viewed toward rotor |
Degree of protection | IP00 |
Insulation class | "F" |
Moisture (F) / Environmental (H) protection class | H1 |
Max. permitted ambient temp. for motor (transport/storage) | + 80 °C |
Min. permitted ambient temp. fo rmotor (transport/storage) | - 40 °C |
Installation position | Any |
Condensation drainage holes | None, open rotor |
Mode | S1 |
Motor bearing | Ball bearing |
Touch current according to IEC 60990 (TN system) | < 0.75 mA |
Electrical hookup | With plug |
Motor protection | Thermal overload protector (TOP) with basic insulation |
With cable | Axial |
Protection class | I |
Conformity with standards | EN 60335-1; CE |
Approval | CCC; CSA C22.2 No. 100; UL 1004-1 |
EBM風機D2D系列其他常用型號：
EBMPAPST D2D160-BE02-11
EBMPAPST D2D160-BE02-12
EBMPAPST D2D160-BE02-14
EBMPAPST D2D133-DB02-06
EBMPAPST D2D146-AA28-28
EBMPAPST D2D160-CE02-11
