PORTESCAP電機28L28-219.49技術規格
Part Number | 28L28-219.49 |
Motor Diameter (mm) | 28 |
Shaft Play - Axial (mm) | 0.15 |
Shaft Play - Radial (mm) | <0.018 |
Back EMF Constant (V/1000 rpm) | 2.24 |
Continuous Current, Max (A) | 0.95 |
Mechanical Time Constant (ms) | 13.5 |
Motor Regulation (103/Nms) | 13 |
No-Load Current, Typical (mA) | 22 |
No-Load Speed (rpm) | 5300 |
Nominal Voltage (V) | 12 |
Rotor Inertia (gcm2) | 10.4 |
Torque Constant (mNm/A) | 21.4 |
Weight (g) | 125 |
Ambient Operating Temperature, Max: Rotor (°C) | 100 |
Ambient Operating Temperature Range: Motor (°C) | -30 to 85 |
Continuous Speed, Max (rpm) | 8000 |
Efficiency | 80% |
Friction Torque (mNm) | 0.47 |
Output Power (W) | 9.6 |
Rotor Inductance (mH) | 0.5 |
Shaft Load, Max - Axial (5 mm. from bearing) (N) | 6 |
Shaft Load, Max - Radial (5 mm. from bearing) (N) | 250 |
Stall Torque at Nominal Voltage (mNm) | 43 |
Terminal Resistance (Ohm) | 5.95 |
Thermal Resistance (rotor/body) (°C/W) | 5/12 |
Thermal Time Constant (rotor/stator) (s) | 13 / 760 |

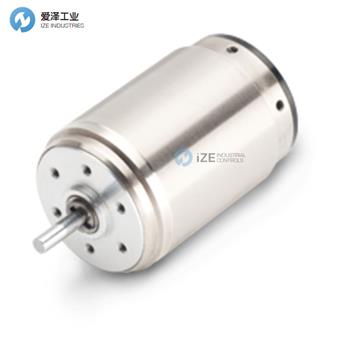

PORTESCAP電機28L28系列介紹
這款28L28有刷直流電機采用具有成本效益的設計和Alnico磁鐵，可連續提供高達20 mNm的扭矩，同時達到高達80％的效率，并保持較長的使用壽命。
Featuring a cost effective design with an Alnico magnet, this 28L28 brush DC motor continuously delivers a torque up to 20 mNm while reaching up to 80% efficiency and maintains a long lifetime.
PORTESCAP電機28L28系列其他常用型號：
PORTESCAP 28L28-219.49
PORTESCAP 28L28-410E.49
PORTESCAP 28L28-413E.49
PORTESCAP 28L28-416E.49
PORTESCAP motro NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PORTESCAP電機28L28-219.49的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PORTESCAP products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.dljtgw.com.
PORTESCAP電機28L28-219.49技術參數
