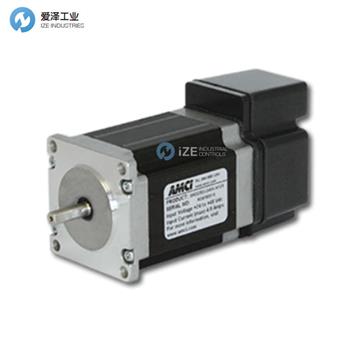

AMCI電機SMD23E2系列技術參數
GENERAL | |
Network Availability: | SMD23E2 (EtherNet IP, Modbus TCP/IP, & Profinet w/ Embedded Switch) |
Steps Per Revolution: | Programmable between 200 and 32,767 steps |
Input voltage: | 24 to 48 Vdc |
Motor current: | 3.4 A/phase |
Aux-logic supply voltage: | 24 to 48 Vdc |
Operating Temp: | -4°F to 122°F (-20°C to 50°C) |
Storage Temp: | -40°F to 185°F (-40°C to 85°C) |
INPUTS | |
General Purpose Inputs | |
Number/type | 2 inputs, programmable |
Logic range | 5-24 Vdc |
Function | Home Limit, Over Travel Limit, Capture Input, Manual Jog Stop, E-Stop, registration, index move |
Input Specifications | -Off State Voltage: 0 to 1.5Vdc |
-On State Voltage: 3.3 to 27Vdc | |
-Input Requires 10mA of current to operate | |
COMMUNICATION | |
Interface | Ethernet or Serial |
Bit rate | 10-100 Mbps |
Protocol | Ethernet/IP, Modbus-TCP, & Profinet |
AMCI電機SMD23E2系列產品介紹
特征
集成步進電機 + 驅動器 + 分度器，實現優質性能
雙端口網絡產品提供用于EtherNet的DLR/IP和Profinet的MRP
多協議 - 內置EtherNet/IP，Modbus-TCP和Profinet網絡
節省空間的設計簡化了安裝，減少了布線
IP50 防護等級（IP64 或 IP67 可選）
FEATURES
Stepper Motor + Drive + Indexer integrated for optimum performance
Dual-port networking offers offers DLR for EtherNet/IP & MRP for Profinet
Multi-protocol - EtherNet/IP, Modbus-TCP, & Profinet networks built-in
Space saving design simplifies installation with reduced wiring
IP50 rated (IP64 or IP67 optional)
AMCI電機SMD23E2系列其他常用型號：
AMCI SMD23E2-130A-M12
AMCI SMD23E2-130E-M12
AMCI SMD23E2-240A-M12
AMCI SMD23E2-240E-M12
AMCI motor NEW + ORIGINAL+ ONE YEAR WARRANTY
