ATOS電磁閥DHI-0713-24VDC技術參數
Directional control valves size 06 | DHI-0 |
Valve configuration, see section | 71 = double solenoid, 3 positions, spring centered |
Spool type, see section | 3 |
Voltage code, see section | 24 DC |
ATOS電磁閥DHI-0系列介紹

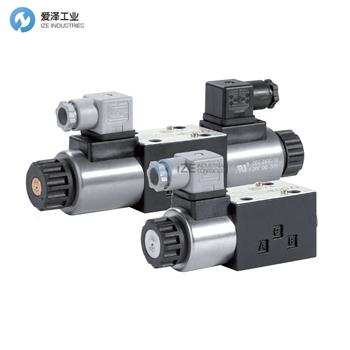

Solenoid directional valves type DHI
direct operated, ISO 4401 size 06
Spool type, two or three position, direct operated valves with solenoids certified according the North American standard
cURus.
Solenoids are made by:
? wet type flanged tube, same for AC and DC power supply, with integrated manual override pin
? interchangeable coils, specific for AC or DC power supply, easily replaceable without tools
Standard coils protection IP65, optional coils with IP67 AMP Junior Timer or lead wire connections.
Wide range of interchangeable spools
The valve body is 3 chamber type made by shell-moulding casting with wide internal passages.
Mounting surface: ISO 4401 size 06
Max flow: 60 l/min
Max pressure: 350 bar
DHI 型電磁方向閥
直接操作式，ISO 4401 規格 06
滑閥式、二位或三位、直動式閥門，帶電磁閥，經北美標準認證
cURus.
螺線管由以下材料制成：
? 濕式法蘭管，同樣適用于交流和直流電源，帶有集成手動超馳銷
? 可互換線圈，專用于交流或直流電源，無需工具即可輕松更換
標準線圈防護等級為 IP65，可選線圈配備 IP67 AMP Junior 定時器或引線連接。
多種可互換線軸
閥體為三腔式殼型鑄造，內部通道寬闊。
安裝面： ISO 4401 尺寸 06
最大流量: 60 升/分鐘
最大壓力： 350 bar
ATOS電磁閥DHI-0系列其他常用型號：
ATOS DHI-0713-24VDC
ATOS DHI-0711 23
ATOS DHI-0714
ATOS DHI-0714-X 24DC 23
ATOS DHI-0913 73
ATOS DHI-0631-2-23
ATOS DHI-0630/2/A23
ATOS DHI-0711-00
