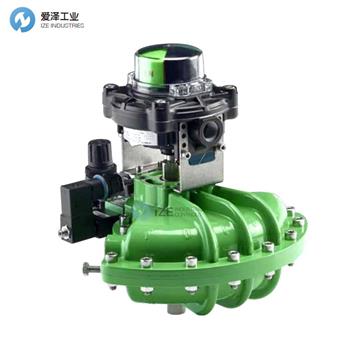

ROTORK執行器K-TORK系列規格描述
General | K-TORK range actuators are designed for the pneumatic operation of valves, dampers and other mechanical devices that require a quarter-turn operation. |
Valve Interface | K-TORK actuators are available with mounting flanges and output drive couplings conforming to international standard ISO 5211 or USA standard MSS SP-101. |
Easy Mounting of Accessories | NAMUR topworks mounting interface facilitates easy installation of industry standard switch box and positioner assemblies. |
Lubrication | K-TORK actuators are factory sealed and lubricated for life |
Design Life | Actuators are designed for a minimum of two million operations. |
Finish | Actuators are finished in polyester powder coating, colour green RAL 6 |
Finish Options: | Colour Other colours may be specified. |
Operating Temperature | K-TORK actuators are built with two seal options, referred to as high and low temperature builds, suitable for the following operating temperature ranges:- |
High Temperature (HT) | : -20 to +149 oC (0 to +300 oF) |
Low Temperature (LT) | : -40 to +70 oC (-40 to +160 oF) |
Operating Medium | Compressed air or inert gas. |
Operating Pressure | Sizes KT-02 to KT-06: 2 to 7 bar (30 to 100 psi) range,7 bar (100 psi) maximum working pressure, 10 bar (150 psi) maximum overload pressure. |
Environmental Protection | Certified to IP66M / IP67M and meets NEMA 4 / 4X. |
International Standards | CE marked and certified in accordance with ATEX 94/9/EC. |
Accessories | A full range of limit switchboxes, positioners and other accessories are available to suit the application – all are available in general purpose or hazardous areas specifications to suit relevant requirements. |
Machinery Directive | K-TORK actuators as partly completed machinery must not be put into service until the machinery into which it is to be incorporated has been declared in conformity with the provisions of directive 2006/42/EC and the other relevant provisions. |
ROTORK執行器K-TORK系列簡介
K-TORK執行器和控制裝置代表著閥門自動化的未來。葉片致動器是“真實旋轉”致動器，其不需要將線性運動轉換成旋轉運動。結果是一種簡單，高度準確和可靠的直角回轉氣動執行器，該執行器被指定用于最苛刻的過程流量控制應用。
提供雙作用或彈簧復位配置
扭矩輸出高達18,300 Nm（155,000 lbf.in）
簡單，一動
在快速的周期時間內能夠進行數百萬次操作
易于從雙作用轉換為彈簧復位
精確調節0.25度或更高精度的直角回轉控制閥
低摩擦，雙對置雙唇密封，使用壽命長
全封閉，不通風的彈簧外殼
符合VDI/VDE 3845控制附件安裝標準
大端口快速運行，無空氣限制
符合ANSI/AWWA C540-02和C541-08
標準80至100°旋轉，可調
通過IP66M/IP67M認證并符合NEMA 4/4X
CE標記和認證，符合ATEX 2014/34/EU
標準溫度等級-20°C至+ 70°C（-0°F至+ 160°F）
工作壓力為7 bar（100 psi）或10 bar（150 psi）額定值
所有彈簧復位型號上的標準ISO 5211驅動器
選項：
高溫（+ 149°C，+ 300°F）和低溫（-40°C，-40°F）選件
離合齒輪手動超控
“ RANGER CG”防腐蝕劑完成
一體式空氣故障安全儲罐
全方位的打開/關閉，調節或總線網絡控制
改造和工廠裝配的聯動套件，閥門自動化服務
外螺紋軸適配器，用于彈簧復位型
ROTORK執行器K-TORK系列型號解析
ROTORK執行器K-TORK系列其他常用型號：
ROTORK KT-30-FC80-LT-M-EP-1
ROTORK KT-30-DA-HT-N-RG-0
ROTORK KT-02
ROTORK KT-03
ROTORK KT-06
ROTORK KT-10
ROTORK KT-20
ROTORK KT-30
ROTORK KT-40
ROTORK KT-50
ROTORK KT-60
ROTORK KT-70
