HONEYWELL壓力變送器STG775-F1GC4A-1-A-AHS-11S-A-21A0-F1技術參數
Code | STG775-F1GC4A-1-A-AHS-11S-A-21A0-F1 |
KEY NUMBER | STG775: Gauge Dual Head |
Process Head & Diaphragm Materials | F: 316 Stainless Steel, Hastelloy C - 276 |
Fill Fluid | 1: Silicone Oil 200 |
Process Connection | G: 1/2" NPT (female),Same as Process Head |
Bolt/Nuts Materials | C: Carbon Stee |
Vent/Drain Type/Location | 4: |
Gasket Materials | A: Teflon? or PTFE (Glass Filled) |
Head/Connect Orientation | 1: Standard,High Side Left, Ref Side Right2 / Std Head Orientation |
Approvals | A: <FM> Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof |
Electronic Housing Material & Connection Type | A: Polyester Powder Coated Aluminum,1/2 NPT,None |
Output/ Protocol | H: 4-20mA dc,HART Protocol |
Customer Interface Selections | S: Standard(w/Internal Zero,Span&Config buttons),None,EN, RU |
Application Software | 1: Standard Diagnostics |
Output Limit, Failsafe & Write Protect Settings | 1: Disabled,High> 21.0mAdc,Honeywell Std (3.8 - 20.8 mAdc) |
General Configuration | S: Factory Standard |
Accuracy and Calibration | A: |
Mounting Bracket | 2: Angle Bracket, 304 SS |
Customer Tag | 1: One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
Unassembled Conduit Plugs & Adapters | A0: No Conduit Plugs or Adapters Required |
Certifications & Warranty | F1: Calibration Test Report & Certificate of Conformance (F3399) |

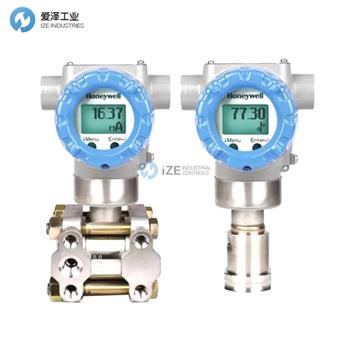

HONEYWELL壓力變送器STG系列介紹
STG700 和 STG70L 是 SmartLine產品系列的一部分，適用于監測、控制和數據采集，采用壓阻傳感器技術，將壓力傳感與片上溫度補償功能相結合，在各種應用壓力下提供高精度、穩定性和高性能和溫度。 SmartLine 系列還經過全面測試并符合 Experion PKS，提供更高水平的兼容性保證和集成功能。 SmartLine可輕松滿足壓力測量應用苛刻的應用需求。
Part of the SmartLine family of products, the STG700 and STG70L are suitable for monitoring, control and data acquisition featuring piezoresistive sensor technology combining pressure sensing with on-chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.

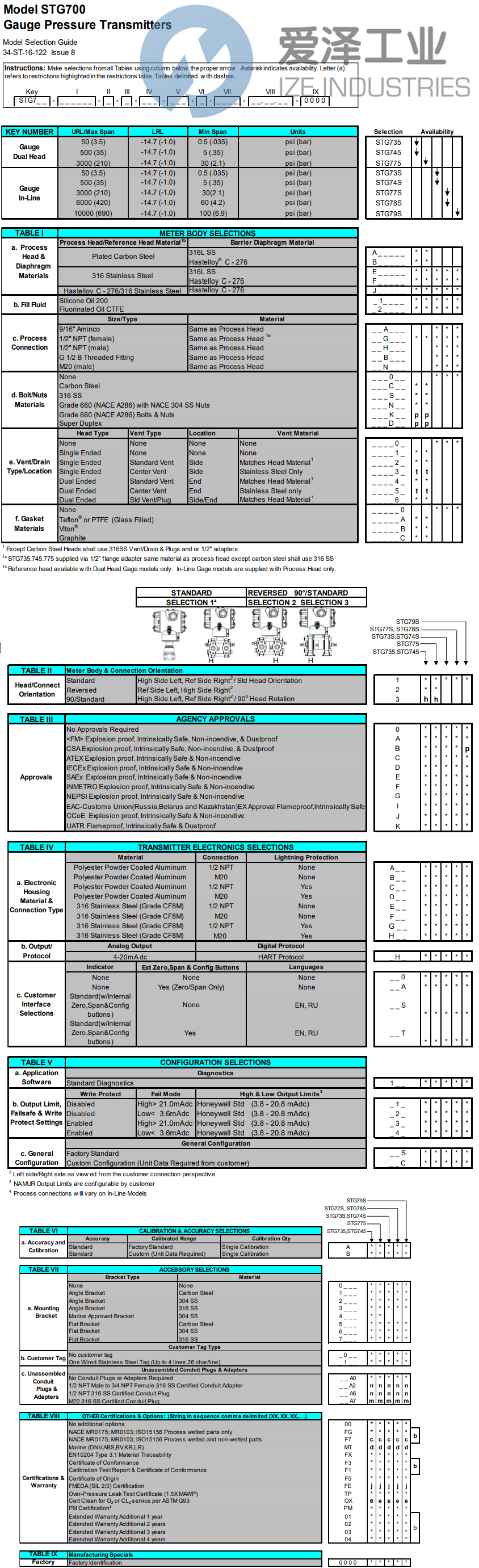

HONEYWELL壓力變送器STG系列選型
HONEYWELL壓力變送器STG系列其他常用型號：
HONEYWELL STG77S-E1B000-1-C-BHT-13C-B-01A7-F1/FE/TP-0000
HONEYWELL STG77S-E1G000-1-0-AH0-11S-A-10A0-00-X000
HONEYWELL STG77S-E1G000-1-0-AHS-11C-B-11A0-F1-0000
HONEYWELL STG77S-E1G000-1-0AHS-11S-A-00A0-00-0000
HONEYWELL STG77S-E1G000-1-A-AHA-11S-A-10A0-00-0000
HONEYWELL STG77S-E1G000-1-A-AHS-11S-A-10A0
HONEYWELL STG77S-E1G000-1-A-AHS-11S-A-10A0-00-0000
HONEYWELL STG77S-E1G000-1-A-AHT-11S-A-10A0-02-0000
HONEYWELL STG77S-E1G000-1-A-CHS-11S-A-00A0
HONEYWELL STG77S-E1G000-1-A-AHS-11S-A-00A0
HONEYWELL STG77S-E1G00-1-A-AHS-11S-A-10A0
HONEYWELL STG77S-F1G0001-A-BHS11C-B11A0-F1,F5
HONEYWELL STG77S-F1G000-1-A-EHS-11S-A-10A0
HONEYWELL STG77S-F1G000-1-C-AHS-11S-A-10A0-00-0000
HONEYWELL STG775-F1GC4A-1-A-AHS-11S-A-21A0-F1
HONEYWELL Pressure Transmitters NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL壓力變送器STG775-F1GC4A-1-A-AHS-11S-A-21A0-F1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.dljtgw.com.
