DUNGS風壓開關LGW50產品參數

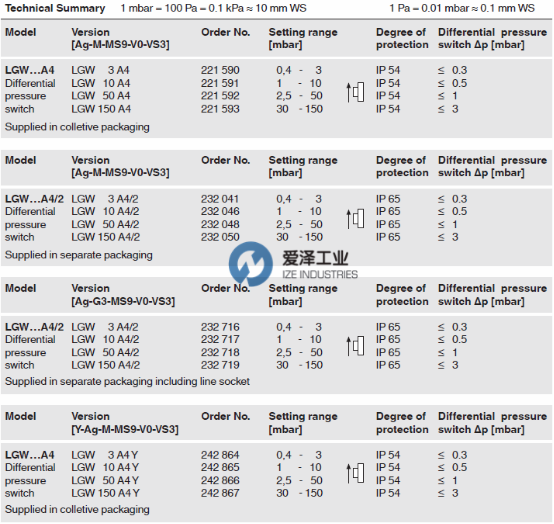

Specification | |||||
Model | Version[Ag-M-MS9-V0-VS3] | Order No. | Setting range [mbar] | Degree of protection | Differential pressure switch ?p [mbar] |
LGW…A4 | LGW 3 A4 | 221 590 | 0,4-3 | IP 54 | ≤ 0.3 |
Differential pressure switch | LGW 10 A4 | 221 591 | 1-10 | IP 54 | ≤ 0.5 |
LGW 50 A4 | 221 592 | 2,5-50 | IP 54 | ≤ 1 | |
LGW 150 A4 | 221 593 | 30-150 | IP 54 | ≤ 3 | |

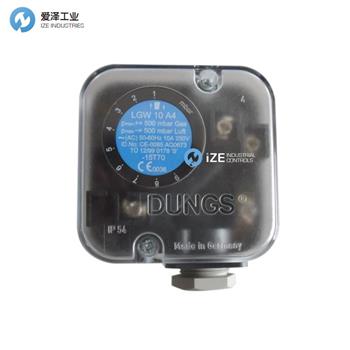

DUNGS風壓開關LGW50產品介紹
LGWA4壓差開關是用于自動燃燒器控制的可調壓差開關。它們適用于接通、斷開或接通相對于設定參考值的實際壓力值變化的電路。參考值（開關點）可以方便快捷地設置，使用帶有刻度的三角輪，而無需使用壓力表。標準情況下，測試接頭集成在金屬外殼中。
The differential pressure switch LGW…A4 is an adjustable differential pressure switch as per EN 1854 for automatic burner controls.
It is suitable for switching a circuit on, off or over on changes in actual pressure value relative to the set reference value. The reference value (switching point) is adjusted on a setting wheel provided with a scale. The test nipple is integrated in metal housing as standard.
DUNGS風壓開關LGW50其他常見型號：
DUNGS LGW3A4
DUNGS LGW10A4
DUNGS LGW50A4
DUNGS LGW150A4
DUNGS LGW3A4/2
DUNGS LGW10A4/2
DUNGS LGW50A4/2
DUNGS LGW150A4/2
DUNGS LGW3A4Y
DUNGS LGW10A4Y
DUNGS LGW50A4Y
DUNGS LGW150A4Y
DUNGS pressure switches NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUNGS風壓開關LGW50的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUNGS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
