BINMASTER傾斜開關BM65技術參數
Switch Ratings: | 15 Amps @125 or 250, 1/8 HP @ 125 VAC, ? HP @ 250 VAC, 1/2 Amp @ 125 VDC, 1/4 Amp @ 250 VDC |
Operating Temp: | -40°F to +300°F (-40°C to +149°C) |
Approvals & Certifications: | Listed for Class II, Groups E, F & G Hazardous Locations |
Enclosure Type: | Die cast aluminum |
Housing Enclosure: | Die cast aluminum |
Mounting: | Internal or external, 16 gauge galvanized mounting plate |
BINMASTER傾斜開關BM65產品介紹

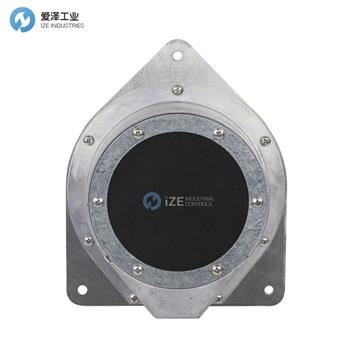

The BM65 provides automatic point level indication of free-flowing dry materials and can be used in environments where there is a risk of combustible dust. UL Class II, Groups E, F, & G explosion-proof certified, this diaphgragm switch for hazardous locations can be installed to detect high, intermediate, and low levels. The BM65 offers both internal and external mounting options and the choice of a standard neoprene diaphragm, a heavy-duty neoprene diaphragm, or a heavy-duty silicon diaphragm to make it adaptable to a variety of materials.
BM65可以自動指示自由流動的干燥物料的液位水平，并且可以在存在可燃粉塵危險的環境中使用。該傾斜開關通過了UL Class II，E，F(xiàn)和G組的防爆認證，可以安裝在危險場所，以檢測高，中和低水平。BM65提供內部和外部安裝選項，并提供標準氯丁橡膠隔膜，重型氯丁橡膠隔膜或重型硅隔膜的選擇，以使其適用于多種材料。
BINMASTER傾斜開關其他常見型號：
BINMASTER BM65-R
BINMASTER BM65-RH
BINMASTER BM-65-RHT
BINMASTER BM65-F
BINMASTER BM65-FH
BINMASTER BM65-FHT
BINMASTER BM65
BINMASTER Rotary level switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BINMASTER傾斜開關BM65的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BINMASTER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.dljtgw.com.
BINMASTER傾斜開關BM65產品參數
