System Specifications

Sensor Type

Electrochemical cell

Typical Life (Electrochemical Cell)

2 to 3 years under normal conditions

Warranty

-  Two years for the Base Unit and Interface Module
-  One year for the electrochemical cell

Malfunctions Monitored

-  Calibration Errors
-  Data Memory Errors

Measuring Ranges

- Ammonia (NH3): 0-50 ppm, 0-100 ppm
- Carbon Monoxide (CO): 0-100 ppm, 0-500 ppm
- Chlorine (Cl2): 0-10 ppm, 0-20 ppm
- Chlorine Dioxide (ClO2): 0-3 ppm
- Hydrogen Chloride (HCl): 0-20 ppm
- Hydrogen Sulfide (H2S): 0-100 ppm, 0-50 ppm, 0-20 ppm
- Nitric Oxide (NO): 0-100 ppm
- Nitrogen Dioxide (NO2): 0-20 ppm
- Oxygen (O2): 0-25% by volume
- Ozone (O3): 0-1 ppm
- Sulfur Dioxide (SO2): 0-20 ppm, 0-100 ppm

Response Time(100% FS Gas Applied)

- Cl2 and ClO2: T90 < 60 sec
- CO, H2S and NO2: T90 < 30 sec
- HCl: T90 < 100 sec
- NH3 and O3: T90 < 90 sec
- NO and SO2: T90 < 10 sec
- O2: T90 < 15 sec

Repeatability

± 2% of full scale except ± 0.1 ppm for O3, ± 0.2 ppm for CIO2 and ± 1% of full scale for O2

Zero Drift

< 5% per year

Approvals

CSA, ATEX, CE Marking, GOST

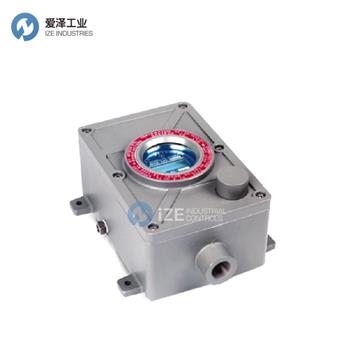

Mechanical Specifications – Base Unit

Length

6.6 inches (168mm)

Height

3.3 inches (84mm)

Width

4.4 inches (112mm)

Weight

5.5 pounds (2.5kg)

Mounting Holes

4.9 inches (124mm) center to center

Mechanical Specifications - Interface Module

Length

6.6 inches (168mm)

Diameter

1.75 inches (44mm)

Weight

1.0 pounds (0.45kg)

Mounting

? inch NPT

Housing

Anodized Aluminum

Electrical Specifications

General Purpose Installations

Maximum distance between the TS4000 and the power source @ 24VDC nominal (600 ? load resistor maximum) is 3,000 feet (910 meters)

Input Power

20 to 36VDC range; +24VDC nominal 0.120amps

Relay Ratings (Optional)

8A @ 250 VAC/8A @ 30 VDC resistive maximum (3x) SPDT – Warning, Alarm and Fault

Power Consumption

Start-up 125mA, Normal Operation 120mA

Output Current

600 ? maximum @ 24VDC
Signal Range: 4-22mA Detection Range: 4-20mA Start-up: 1.5mA Calibration: 1.5mA
Fault: < 1.0mA Over-range: 22mA

Electrical Classification

Class I, Division 1 & 2, Groups B, C and D;
Class II, Division 1 & 2, Groups E, F & G; Class III; Ex d ib IIB + H2 T5, Type 4X with Remote Interface Module;
EEx d mb IIC (-408C [ Ta [ + 758C)

Status Indicator

LED Display with Normal, Gas Present, Fault and Calibration Cues
