FOXBORO PH傳感器PH12系列產品參數

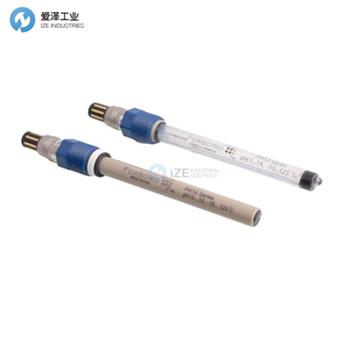

FOXBORO PH傳感器PH12-1G11Q-ZZ產品介紹

特點與優勢

?耐用的PEEK主體

優異的強度和耐化學性。更長的使用壽命和更好的抗維護性。

?最佳性能的平膜電極

高達125°C的高溫能力極大地?cái)U(kuò)展了平板玻璃的應用范圍。堅固的結構可延長最苛刻應用的使用壽命。

?非金屬濕件

傳感器不受大多數過程流體的侵蝕，從而大大延長了使用壽命。

?寬范圍和高溫電極

半球形玻璃電極適用于非常寬的溫度范圍（-25至+ 125°C）和非常高的溫度（140°C），可根據您的應用優化傳感器類型，從而提供最佳性能和最長使用壽命。

?生物相容性和3A衛生標準

認證允許在要求嚴格遵守適用標準的食品，飲料，乳制品和生物制藥過程中使用這些傳感器。

描述

對于pH值和ORP應用要求12毫米外形尺寸的堅固耐用且具有成本效益的傳感器，F(xiàn)oxboro型號PH12提供了最耐用的材料和結構。

與其他12 mm pH和ORP傳感器不同，F(xiàn)oxboro PH12型具有耐化學腐蝕的PEEK閥體，扁平膜感應電極，并且沒有金屬潤濕部件。設計功能的結合，以及125°C（平板玻璃）或140°C（圓頂玻璃）的額定溫度，提供了無與倫比的堅固性和使用壽命。

此外，PH12結合了非金屬接地解決方案作為標準功能，從而允許在經濟高效的平臺上進行傳感器診斷。

FEATURES / BENEFITS

? Durable PEEK body

Excellent strength and chemical resistance. Longer service life and better resistance to the rigors of maintenance.

? Best performing flat membrane electrode

High temperature capability to 125°C greatly expands the range of applications for flat glass. Rugged construction extends service life in the harshest of applications.

? Non-metallic wetted parts

Sensor is immune to attack from most process fluids, greatly extending the service life.

? Wide range and high temperature electrodes

Domed glass electrodes for very wide range (-25 to +125° C) and very high temperature (140° C) allow optimization of sensor type for your application, providing the best performance and longest service life.

? Biocompatible and 3-A Sanitary Compliant

Certifications permit the use of these sensors in food, beverage, dairy and biopharmaceutical processes that require strict compliance with applicable standards.

DESCRIPTION

For pH and ORP applications requiring a rugged, yet cost effective sensor in a 12 mm form factor, the Foxboro Model PH12 provides the most durable materials and construction available.

Unlike other 12 mm pH and ORP sensors, the Foxboro Model PH12 incorporates a chemical resistant PEEK body, flat membrane sensing electrode, and no metallic wetted parts. This combination of design features, together with temperature ratings of 125° C (flat glass) or 140° C (domed glass), provides unrivaled ruggedness and length of service life.

In addition, the PH12 incorporates a nonmetallic solution ground as a standard feature, allowing for sensor diagnostics in a cost effective platform.

FOXBORO PH傳感器其他常見型號：

FOXBORO PH10-1P1Q-AA

FOXBORO PH10-3N2A

FOXBORO PH10-1N3Q

FOXBORO PH10-1N2Q

FOXBORO PH10-3N3Q

FOXBORO PH10-3N1A-2

FOXBORO PH10-1N1A-E3

FOXBORO PH10-1P1A-C

FOXBORO PH10-4N1A-1H

FOXBORO PH10-2N2A-E3

FOXBORO PH12-1G11Q-ZZ

FOXBORO PH sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
