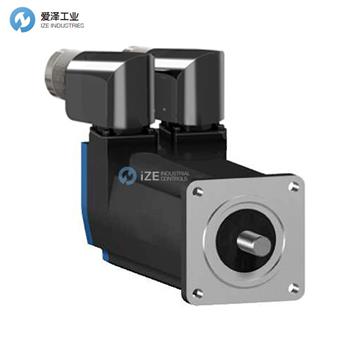

supply voltage max

480 V

network number of phases

Three phase

continuous stall current

2.2 A

maximum continuous power

0.67 W

maximum current Irms

6 A for LXM32.U90M2 at 115 V
8.8 A for LXM32.U90M2 at 230 V
10.3 A for LXM15LD13M3
8.8 A for LXM05AD10F1
8.8 A for LXM05AD17F1
8.8 A for LXM05CU70M2
8.8 A for LXM05AD10M2
8.8 A for LXM05AD10M3X
8.8 A for LXM05BD10F1
8.8 A for LXM05BD17F1
8.8 A for LXM05BD10M2
8.8 A for LXM05BD10M3X
8.8 A for LXM05CD10F1
8.8 A for LXM05CD17F1
8.8 A for LXM05CD10M2
8.8 A for LXM05CD10M3X

maximum permanent current

8.8 A

switching frequency

8 kHz

second shaft

Without second shaft end

shaft diameter

9 mm

shaft length

20 mm

feedback type

Multiturn SinCos Hiperface

holding torque

0.8 N.m holding brake

motor flange size

55 mm

number of motor stacks

2

torque constant

0.36 N.m/A at 120 °C

back emf constant

22 V/krpm at 120 °C

number of motor poles

6

rotor inertia

0.1173 kg.cm2

stator resistance

5.2 Ohm at 20 °C

stator inductance

10.6 mH at 20 °C

stator electrical time constant

2.04 ms at 20 °C

maximum radial force Fr

190 N at 7000 rpm
190 N at 8000 rpm
200 N at 6000 rpm
220 N at 5000 rpm
230 N at 4000 rpm
260 N at 3000 rpm
290 N at 2000 rpm
370 N at 1000 rpm

maximum axial force Fa

0.2 x Fr

brake pull-in power

10 W

type of cooling

Natural convection

length

181 mm

centring collar diameter

40 mm

centring collar depth

2 mm

number of mounting holes

4

mounting holes diameter

5.5 mm

circle diameter of the mounting holes

63 mm

net weight

1.6 kg
