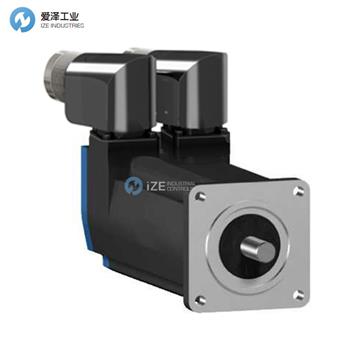

SCHNEIDER伺服電機BSH0553T02A2A技術參數
range compatibility | Lexium 32 |
supply voltage max | 480 V |
network number of phases | Three phase |
continuous stall current | 3.1 A |
maximum continuous power | 0.97 W |
maximum permanent current | 11.9 A |
switching frequency | 8 kHz |
second shaft | Without second shaft end |
shaft diameter | 9 mm |
shaft length | 20 mm |
feedback type | Multiturn SinCos Hiperface |
motor flange size | 55 mm |
number of motor stacks | 3 |
number of motor poles | 6 |
rotor inertia | 0.134 kg.cm2 |
maximum axial force Fa | 0.2 x Fr |
type of cooling | Natural convection |
length | 176.5 mm |
centring collar diameter | 40 mm |
centring collar depth | 2 mm |
number of mounting holes | 4 |
mounting holes diameter | 5.5 mm |
circle diameter of the mounting holes | 63 mm |
product weight | 1.76 kg |
SCHNEIDER伺服電機BSH系列介紹
BSH系列電機是自身轉動慣量低的交流同步伺服電機，特別設計用于高動態的定位任務。
驅動系統由伺服電機和附帶的驅動放大器組成。僅當電機和驅動放大器相互協調時，才會實現理想性能。
SCHNEIDER伺服電機BSH系列其他常用型號：
SCHNEIDER BSH0553T02A2A
SCHNEIDER BSH0553T01F1A
SCHNEIDER BSH0553P21A1A
SCHNEIDER BSH0553P01A2A
SCHNEIDER BSH0553P22F2A
SCHNEIDER BSH0553P01A1A
SCHNEIDER BSH0553T32A2A
SCHNEIDER BSH0553T01A1A
SCHNEIDER BSH0553T11A1A
SCHNEIDER BSH0553T31A1A
SCHNEIDER BSH0553P22A2A
SCHNEIDER BSH0553P02F2A
SCHNEIDER BSH0553P22A1A
SCHNEIDER BSH0553T21A1A
SCHNEIDER BSH0553T02A1A
SCHNEIDER BSH0553P12A2A
SCHNEIDER BSH0553T32A1A
SCHNEIDER BSH0553T02A2A
SCHNEIDER BSH0553P12F1A
SCHNEIDER BSH0553T22F2A
SCHNEIDER servo MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCHNEIDER伺服電機BSH0553T02A2A的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SCHNEIDER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.dljtgw.com.
